Winding to Winding Isolation 200 Vrms SMD Inductor

Brand Name : IKP

Model Number : SDE73-33UH

Place of Origin : China

MOQ : 5000pcs

Price : 0.09USD

Payment Terms : L/C, T/T

Supply Ability : 10,000pcs/week

Delivery Time : 5-15 work days

Packaging Details : Carton

Contact Now

Product Description

Winding to Winding Isolation 200 Vrms SMD Inductor

Magnetic metal powder inductor
Compact design
High current, low DCR and high efficiency
Very low acoustic noise and very low leakage flux noise
High reliability
100% Lead (Pb)-free
RoHS Directive-compliant
Test frequency:
- L: 100KHz/1.0V
- All test data referenced to 25°C ambient
- Testing instrument:
- L: HP4284A, CH11025, CH3302, CH1320, CH1320S LCR meter/RDC: CH16502, Agilent 33420A micro ohmmeter
Heat rated current (Irms) will cause the coil temperature rise approximately Δt of 40°C (keep 1 minute)
Storage conditions
To maintain the solderability of terminal electrodes:
- TAIPAQ products meet IPC/JEDEC J-STD-020D standard-MSL, level 1
- Temperature and humidity conditions: Less than 40°C and 60% RH
- Recommended products should be used within 12 months form time of delivery
- Packing material should be kept where no chlorine or sulfur exists in the air
- Transportation
- Products should be handled with care to avoid damage or contamination from perspiration and skin oils
- Use of tweezers or vacuum pick up is strongly recommended for individual components
- Bulk handling should ensure that abrasion and mechanical shock are minimized

Electrical characteristic
L: S-F 4.7UH+30% AT 1KHZ 0.25V VR102 LCR
DCR: S-F 80m MAX AT 25ºC CHEN HWA 502BCOHM METER
IDC: S-F 2.1A MAX AT 1KHZ 0.25V CHUANG DA 1608+1310 LCZ
Winding to Winding Isolation 200 Vrms SMD Inductor

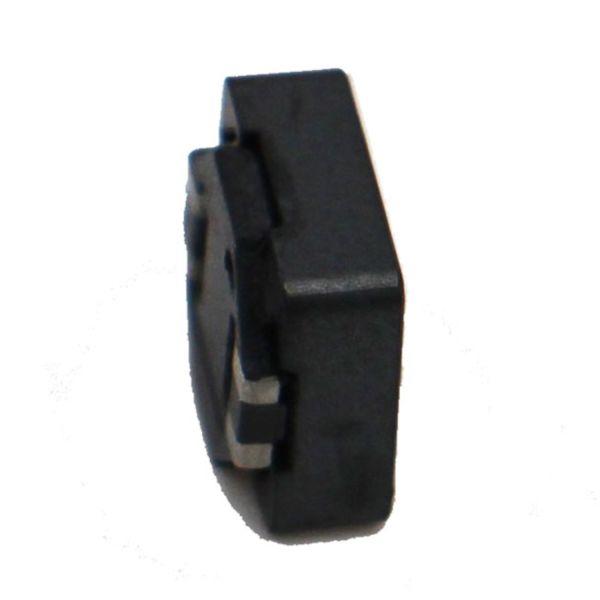

Winding to Winding Isolation 200 Vrms SMD Inductor Images
