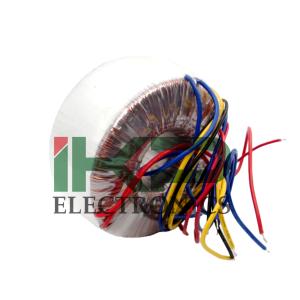

3000VA Rated Power Toroidal Transformer for UPS

Brand Name : IKP

Model Number : Toroidal Transformer

Certification : CE/UL/REACH/ROHS

Place of Origin : CHINA

MOQ : 1000

Price : 3.00-20.00

Payment Terms : L/C, T/T

Supply Ability : 100,000/week

Delivery Time : 10-15 days

Packaging Details : Carton

Contact Now

Specifications:

• Power range:500VA to 10000VA

• Phase: Single

• Input / Output: Customized

• Insulation Class: UL class B, F, H, N (optional)

• Isolation: 4KV (Hi-pot)

• Easy to change diameter and height of the core

• Customized specifications are welcome

Rated Power

(VA)

Outside Dimension

D*H(mm)

Weight

(kg)

Temp. Rise

(℃)

 Approval
500 145*65 5.5 52 UL/CE/RoHS/CQC
1000 175*85 8.5 54 UL/CE/RoHS/CQC
2000 210*90 14.7 55 UL/CE/RoHS/CQC
2500 210*100 16.7 56 UL/CE/RoHS/CQC
3000 215*105 17.7 57 UL/CE/RoHS/CQC
3500 230*115 21.8 58 UL/CE/RoHS/CQC
5000 290*115 30.0 59 UL/CE/RoHS/CQC
7000 330*115 35.0 62 UL/CE/RoHS/CQC
10000 360*115 45.0 65 UL/CE/RoHS/CQC


◆We can design and manufacture customized part with specific requirement


3000VA Rated Power Toroidal Transformer for UPS

3000VA Rated Power Toroidal Transformer for UPS3000VA Rated Power Toroidal Transformer for UPS3000VA Rated Power Toroidal Transformer for UPS3000VA Rated Power Toroidal Transformer for UPS


Wholesale 3000VA Rated Power Toroidal Transformer for UPS from china suppliers

3000VA Rated Power Toroidal Transformer for UPS Images
