Amorphous Core High Frequency Toroidal Transformer, UL/Ce/RoHS Certified

Brand Name : IKP

MOQ : 1000

Price : 52.00-58.00

Payment Terms : L/C, T/T

Supply Ability : 100,000/week

Delivery Time : 10-15 days

Packaging Details : Carton

Contact Now

Basic Info.

Model NO.

TM-TR105030-001R

Core

Amorphous Alloy Transformer

Cooling Method

Dry-type Transformer

Winding Type

Multi-winding Transformer

Certification

ISO9001

Usage

Single-phase Transformer

Frequency Characteristics

High Frequency

Shape of Core

Ring

Brand

OEM/ODM

Transport Package

Carton

Specification

137*75mm

Trademark

IKP

Origin

China

HS Code

8504319000

Production Capacity

1000PCS/Day

Product Description

Amorphous Core High Frequency Toroidal Transformer, UL/Ce/RoHS Certified

Usually the Hi-power arc welding inverter's single-ended pulse transformers require the transformer cores with low high frequency loss, high Bs and low Br. so output filter and energy stored inductance required the characteristics of high Bs, low loss and constant permeability. In this case, we made horizontal magnetic treatment on Nano-crystalline alloy to manufacture the transformer cores with low Br and constant permeability.

IKP ELECTRONICS is a leading manufacturer of high-performance non-crystalline and nano-crystalline alloy components. Its high-performance nano-crystalline ultrathin strip, non-crystalline reactor for solar inverter and EMC common mode filter inductance especially have outstanding technical level and excellent quality, allowing our customers to obtain advantages in key competitive fields.

IKP's management policy of "quality first, credit foremost and practicality stressed", focused on product development and production. Customer's requirements is our impetus to make progress, customer's satisfaction is our goal. We wish to have your attention and support, let's work together for our mutual benefit.

ADVANTAGES:
1. New material: Nanocrystalline alloy magnetic core has high resistivity, high magnetic permeability, high saturation magnetic induction intensity, and high temperature stability.
2. New design: The structure of the new winding is more compact, and the energy loss is very small. The leakage inductance is only 2 ~ 20uH, which is one tenth of that of similar transformers. Therefore, the system design becomes simple and convenient.
3. Smaller size and larger capacity: Each gram of nanocrystalline material of the new transformer can perform 15W-25W power conversion (generally only 8-9W) at 20KHz frequency.
4. Safety, high efficiency, energy saving: The extremely low loss makes the efficiency of the transformer more than 99%, and the load continuity rate reaches 100%. There is good insulation between the primary and secondary, and the withstand voltage exceeds 10,000 volts. Compared with traditional transformers, the new transformers have unparalleled advantages and alternatives.

APPLICATION:
Amorphous and nanocrystalline materials can replace ferrite materials. Main application fields: High-frequency high-power inverter DC charging power supply in aerospace and maritime, high-frequency inverter high-power DC power supply for civil and industrial use, charger, inverter welding machine, electroplating power supply, electric vehicle charging equipment, high-frequency induction heating power supply , High-frequency inverter arc spraying power supply, heating pipeline welding power supply, electric spark deposition surfacing power supply, high-power charger power supply, switching power supply, inverter power supply, uninterruptible power supply, etc.

SAMPLE AND ORDER DESCRIPTION:
Input and output are required;
Pressure requirements;
Copper or aluminum;
Product size, such as diameter, height, leads length;
Samples are charged, follow-up in the order;
It is best to have product drawings or samples in kind;
Prepay 50% deposit, the other 50% to delivery.
The inverter transformer main transformer needs to be customized according to specific requirements, there is no standard inventory. Different design schemes, materials selection and production processes determine different final prices.

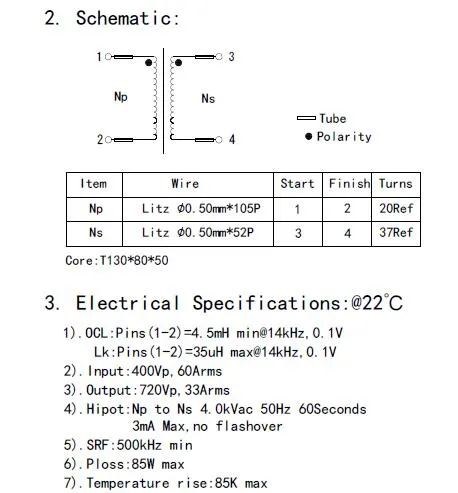

PRODUCT SPECIFICATIONS:

Model	Core size(mm)					Base size			Effective cross	Magnetic	Recommended
									Effective cross	path		power
						(mm)			- sectional area	path		power	Welder current
						(mm)			- sectional area	length		P(f=20kHz)	Welder current
									S(cm2)
	OD	ID	H		OD		ID	H
	OD	ID	H		OD		ID	H		L(cm)		(kw)
IKP-PTT-64-40-20	64	40	20			66	37	23	1.68	16.3		2-4
IKP-PTT-64-40-20	64	40	20			66	37	23	1.68	16.3		2-4

IKP-PTT -68-43-20	68	43	20			72	40	24	1.75	17.4
IKP-PTT -68-43-20	68	43	20			72	40	24	1.75	17.4

IKP-PTT -80-50-25	80	50	25			85	44	30	2.63	20.4		4.5	100/120A

IKP-PTT -100-60-20	100	60	20	105			56	23	2.80	25.1		4-5	160/200A

IKP-PTT -104-60-30	104	60	30	110			57	35	4.38	25.9			315A

IKP-PTT -104-60-35	104	60	35	110			57	40	5.25	25.9			400A

IKP-PTT -105-60-40	105	60	40	110			57	45	6.3	25.9			400/500A

IKP-PTT -120-60-30	120	60	30	125			57	35	6.30	29.8		8-15	400/500A

IKP-PTT -120-70-30	120	70	30	125			67	35	5.25	29.8		6-10	315-400A

IKP-PTT -120-70-40	120	70	40	125			68	45	7.0	29.8			500A

IKP-PTT -130-80-40	130	80	40	136			76	45	7.00	33.0		15-20	400/500A

IKP-PTT -130-80-50	130	80	50	136			76	55	8.75	33.0		23-25	500/630A
IKP-PTT -130-80-50	130	80	50	136			76	55	8.75	33.0		23-25	500/630A

IKP-PTT -130-90-50	130	90	50	136			85	56	7.00	34.5		15-20	630A
IKP-PTT -130-90-50	130	90	50	136			85	56	7.00	34.5		15-20	630A

Note: the above table is the standard model of the core; we can also produce other specification transformers according to customer specifications.
