Ikp Integrated Transformer Carton/Pallet Pfc Choke Coil Differential Mode Inductance

Brand Name : IKP

Model Number : IKP-ACLXXX-1.25-1

Certification : CE/UL/REACH/ROHS

Place of Origin : CHINA

MOQ : 1000

Price : 4.80-5.50

Payment Terms : L/C, T/T

Supply Ability : 100,000/week

Delivery Time : 10-15 days

Packaging Details : Carton

Contact Now

Basic Info.

Model NO.

IKP-ACLXXX-1.25-1

Working Frequency

High Frequency

Structure of Winding

Multilayer Coil

Nature of Operation

Choke Coil

Structure of Magnetizer

Ferrite Coil

Range of Application

Coupling

Packaging Form

Power Coils

Brand

Ikp

Inductor Value

Variable Inductor

Number of Cores

2 Cores Separate

Transport Package

Carton/Pallet

Specification

Rohs, ISO9001

Trademark

IKP

Origin

Hefei, Anhui

HS Code

85045000

Production Capacity

50, 000 PCS/Week

Product Description

Ikp Integrated Transformer Carton/Pallet Pfc Choke Coil Differential Mode Inductance

High saturation flux density
Less flux leakage and beat
Low radiation and core loss
Precise inductance
High current, horizontal or vertical mount
Operating temperature: -55 to 105°C
Housing and tubes
Customized specifications are accepted
Applications:
Switching power output and smoothing circuits
Used as choke coil for high frequency SMPs
Countermeasure against spike ripples
EMI/RFI filters
DC/DC converters
IP and OP devices

IKP Part Number	Inductance (MH)	IDC (Amps)	DCR (OHMS) MAX	Inductance @10 KHZ NO DC ±15%
ACL-XXX-0.05-1	0.05	1	0.072	20
ACL-XXX-0.20-1	0.20	1	0.08	57
ACL-XXX-0.45-1	0.45	1	0.125	73
ACL-XXX-0.80-1	0.80	1	0.145	111
ACL-XXX-1.25-1	1.25	1	0.2	170
ACL-XXX-1.80-1	1.80	1	0.235	247
ACL-XXX-2.45-1	2.45	1	0.265	388
ACL-XXX-3.20-1	3.20	1	0.37	564
ACL-XXX-4.05-1	4.05	1	0.6	850
ACL-XXX-5.00-1	5.00	1	0.7	1250
ACL-XXX-0.05-3	0.05	3	0.031	22
ACL-XXX-0.20-3	0.20	3	0.06	55
ACL-XXX-0.45-3	0.45	3	0.075	83
ACL-XXX-0.80-3	0.80	3	0.095	133
ACL-XXX-1.25-3	1.25	3	0.118	172
ACL-XXX-1.80-3	1.80	3	0.14	262
ACL-XXX-2.45-3	2.45	3	0.18	429
ACL-XXX-3.20-3	3.20	3	0.22	595
ACL-XXX-4.05-3	4.05	3	0.32	850
ACL-XXX-5.00-3	5.00	3	0.32	1500
ACL-XXX-0.08-5	0.08	5	0.02	23
ACL-XXX-0.30-5	0.30	5	0.04	60
ACL-XXX-0.67-5	0.67	5	0.042	72
ACL-XXX-1.20-5	1.20	5	0.058	110
ACL-XXX-1.25-5	1.87	5	0.07	182

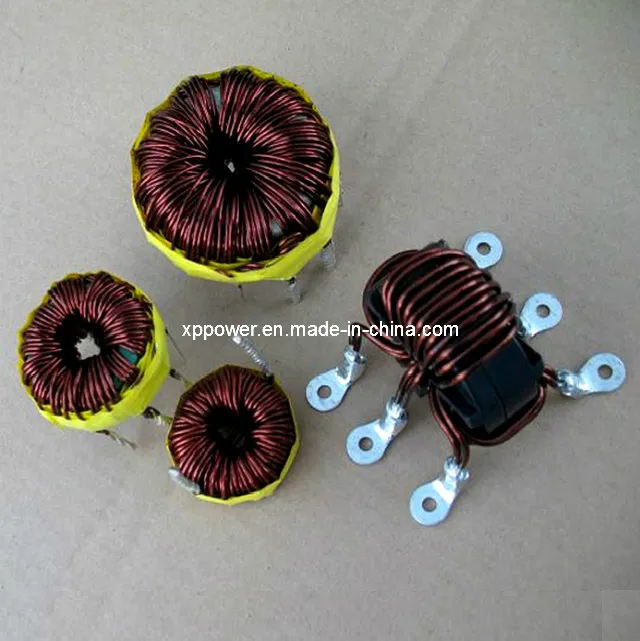

Ikp Integrated Transformer Carton/Pallet Pfc Choke Coil Differential Mode Inductance Images
